Kulatý konektor, počet kontaktů: 3, Kabel, velikost: Standard Amphenol Industrial, pohlaví kontaktu: Vnitřní, orientace

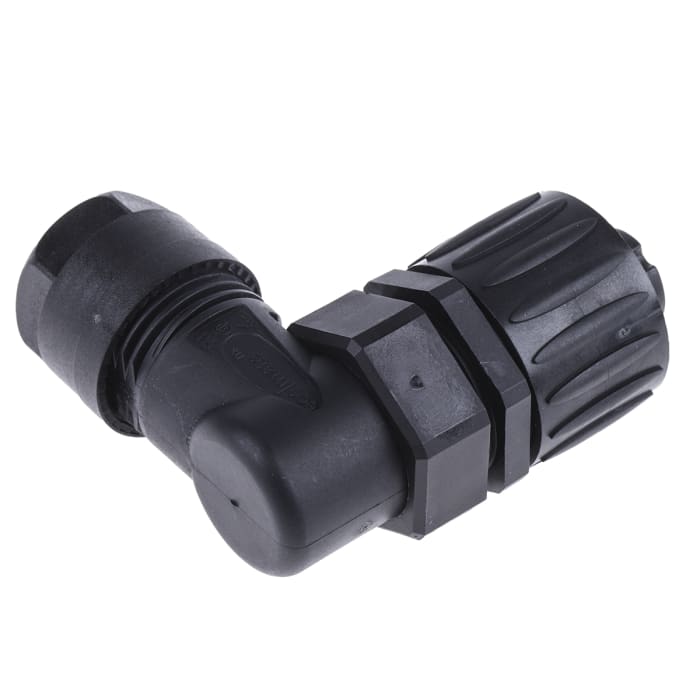

Amphenol Circular Connector

The Amphenol Eco-Mate series black, 3+PE, female receptacle circular connector has a socket type connection. This cable mount connector has a voltage rating of 400VDC and current rating is up to 16A per contact. These circular connectors are easy to assemble and are supplied with fittings which include mounted gaskets, cable glands and clamping rings. This connector is made of premium moulding material with copper alloy contacts silver over nickel plating. The circular connector has a compact and robust design, with a screw lock connection that meets the high requirements of industrial technology applications.
FAQ
Q: Are there accessories available for these connectors?
A: Connector caps are available to retain IP rating when unmated.
Q: What are the advantages of Eco-Mate over similar connectors?
A: As well as being easy to handle and quick mating, these connectors are impact, vibration and UV resistant. They present a robust connector solution for almost any environment.
Q: Does this connector require special tooling?
A: A ratchet crimp tool is available for affixing crimp contacts. (See 241-2786)

Features and Benefits

• Quick and easy assembly
• Robust and ergonomic design
• Screw down termination
• Keyed orientation
• Right angled body orientation
• Pre-loaded ground contact
• Operating temperature ranges between -40°C and 100°C

Applications

• Power supply technology
• Measuring and controlling applications
• Industrial applications

Certifications

• IEC60664-1
• IEC60512-5-2
• Test 5b
• IEC60512-3-1
• IEC60512-2-1
• IP65 rated
• IP67 rated
