External Digital Keypad Entry System

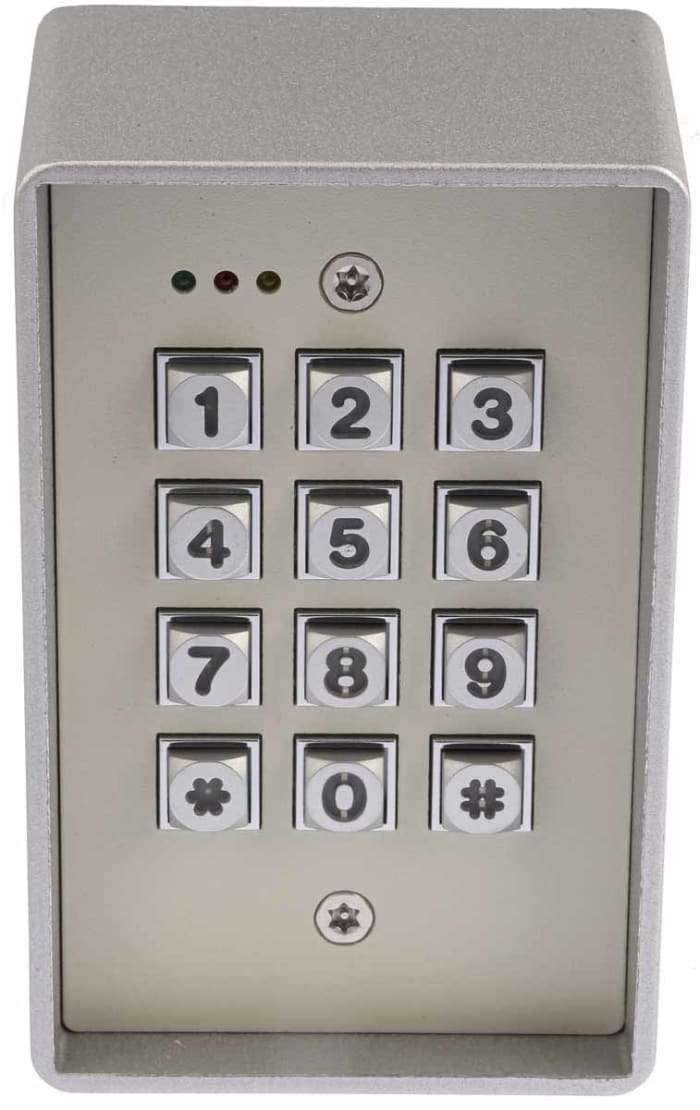

RS Pro Access Keypad

Features

• Die-cast Aluminium
• Dimensions: 123(H)x77(W)x64(D)mm
• Surface mount
• Backlight keypad
• Operating voltage: 12V dc
• 4 or 5 digit programmable codes
• Allows up to 20+1 PIN codes
• Dual relays output for multi-control
• Door reed switch input for Anti-Tailgating
• Fully programmable via keypad and master code
• 3 LED displays with audible indication - Green, Red,Yellow

Indicator signal chart

• Green LED – Power on, Stand-by, 1 Beep (Effective PIN codes, Any key pressed)
• Red LED – Relay 1 activated, 2 Beeps (Entering/Exiting from the Program ode)
• Yellow LED – Relay 2 activated, 3 Beeps (Data computing error), 5 Beeps (Master Code reset Factory – 12345)
