Testovací box 2 BNC samec na samici, Modrá RS PRO

Fluke Test Box, 35.05mm Width, Die Cast Aluminium Body - 3231

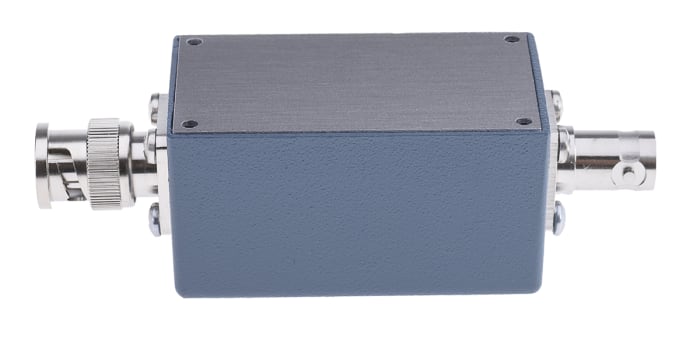

This test box is a Compact RF enclosure designed to provide a simple Interface between BNC male and female connections for test and measurement tasks. It houses two BNC connectors in a small, painted die-cast aluminium cabinet with a removable cover, and is intended for use where a rugged, low-profile connection point is required in laboratory or field environments.

Features and Benefits:

• Die-cast aluminium body provides Durable electromagnetic shielding
  Gold-plated centre contacts improve conductivity and corrosion resistance
  Operates to 1000VRMS between inner conductor and shield for high-voltage testing
  Rated for -55ºC to +150ºC to support varied temperature conditions
  Nominal 50Ω impedance ensures predictable RF performance
  Tarnish-resistant connector plating reduces maintenance needs

Applications

• Suitable for RF cable continuity and signal routing checks
  Used with BNC-equipped instruments for quick coupling
  Ideal for portable field measurement setups requiring rugged enclosure
  Can be used for laboratory bench interconnections during test routines
  Used for short-duration high-voltage verification of connector continuity

What materials are used for the connector centre contacts?

The male centre contact is gold-plated brass and the female centre contact is gold-plated beryllium copper.

What finish is applied to the enclosure exterior and cover?

The enclosure is finished with blue baked enamel over a phosphoric etch and the cover is clear anodised aluminium.

How are the connectors mounted and secured to the box?

The shielded housing is a die-cast aluminium alloy and the cover is attached using four pan-head self-tapping screws.

What termination and mechanical hardware are provided for soldering?

Solder turret Terminal screws are steel to facilitate Durable soldered terminations.
